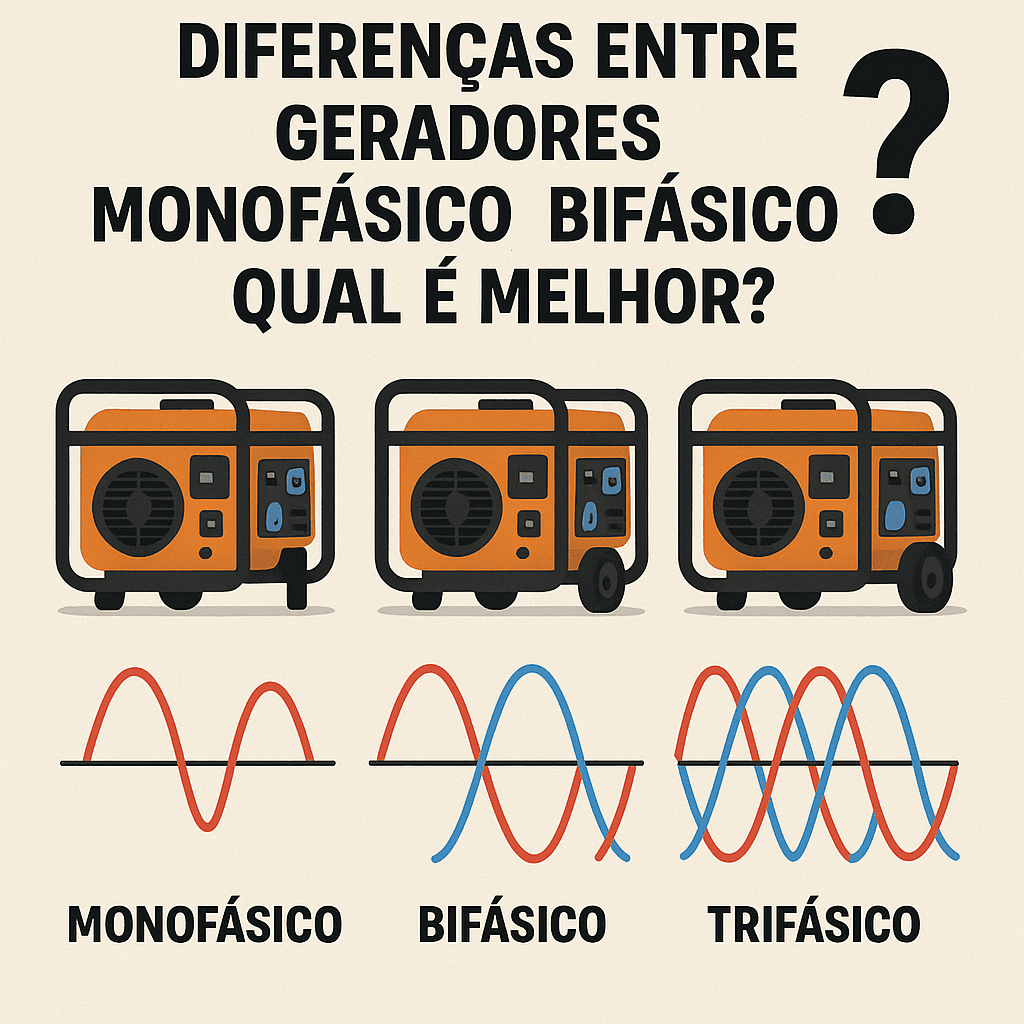

Concepts and Operation of Each System

Single-Phase Generator
A single-phase generator produces a single alternating voltage waveform (phase-neutral) with a cyclic amplitude. It consists of a stator with two coils offset by 180° and a rotor spinning at constant speed to generate a sine wave.

Technical Details

Typical voltage: 127 V or 220 V (depending on local standards).

Starting current: high in resistive and inductive loads due to lack of a second phase to distribute the peak.

Two-Phase Generator
Less common, the two-phase system uses two phases 90° apart, each phase-to-neutral. It requires a stator with four distributed coils and a compatible rotor.

Implementation Examples

Historical use in small industries before widespread adoption of three-phase systems.

Line voltage: combining two 127 V phases yields 220 V phase-to-phase.

Three-Phase Generator
The most common type. The three-phase generator has a stator with three coils spaced 120° apart, producing three independent sine waves. It’s the standard in medium and large installations.

Three-Phase Advantages

Load balancing: distributes currents without neutral return.

Efficient transmission: smaller cable cross-section for same power.

Motors: smoother start and more uniform torque.

Pros and Cons of Each Type

Single-Phase
Advantages:

Simple design and installation.

Lower cabling cost.

Disadvantages:

Limited power capacity (typically up to 50 kVA).

Higher voltage fluctuations under load changes.

Three-Phase
Advantages:

High power capacity (tens to thousands of kVA).

Better voltage regulation and stability under load spikes.

Lower reactive power cost and reduced losses.

Applications and Use Cases

Homes and Small Shops: Usually single-phase, serving lighting, outlets, and small appliances.

Medium Businesses and Workshops: May use two-phase for lighting and light machinery, but three-phase is now preferred.

Industries and Large Buildings: Require three-phase generators for production lines, compressors, elevators, and HVAC systems.

Criteria for Choosing the Best Generator

Power and Load Profile: Add nominal and peak power, apply demand factor. Below 10 kVA, a well-sized single-phase may suffice. Over 20 kVA, three-phase is more economical.

Efficiency and Operating Cost: Three-phase generators can reach 44% efficiency at full load, vs. ~32% for single-phase. Fuel and maintenance costs per kW are also lower in three-phase.

Installation and Maintenance Complexity:

Single-phase: simple ATS and surge protection (DPS).

Three-phase: requires phase-balancing transfer panels, sync relays, and robust grounding.

So, Which One Is Best?

Single-Phase: Simple, but limited in power and stability.

Two-Phase: A historical transitional solution; less relevant today.

Three-Phase: Recommended for most sectors with demands above 30 kVA. Despite higher CAPEX, its lower OPEX and operational robustness justify the investment.
